Building Systems

High Performance Architectural Systems

Our High Performance Architectural systems, COMDOOR™ 2 and COMSASH™ (SC35i & C39i Series) have been certified by SIRIM under MS1017:2022, MS832:2022 & MS2289:2010, and these systems have obtained the PPS for MS832:2022 and MS1017:2022 under the Fourth Schedule of CIDB Act 520.

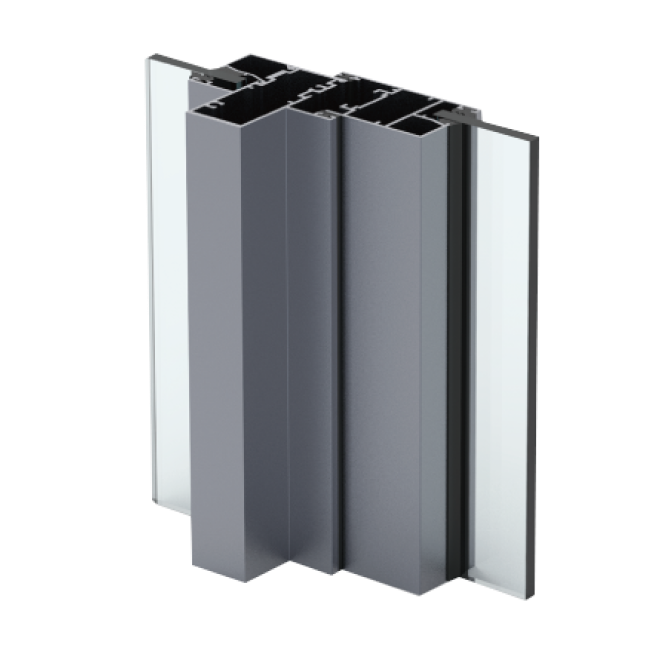

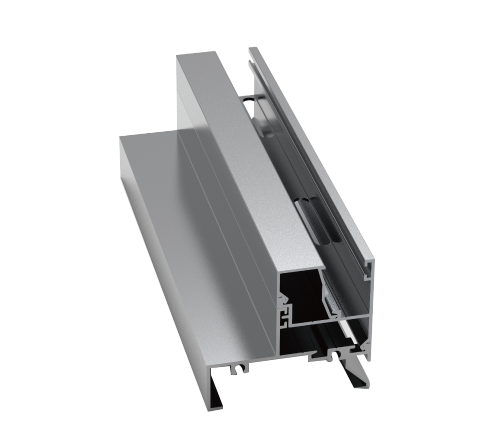

COMSASH™ SC-35i

TOP HUNG/SIDE HUNG WINDOW, FOR MEDIUM AND HIGH RISE BUILDING

Experience unparalleled peace of mind with the COMSASH SC-35i High Performance window system. Engineered to surpass industry standards, it’s rigorously tested and proven for wind loading, air infiltration, and water tightness, ensuring your confidence in every installation.

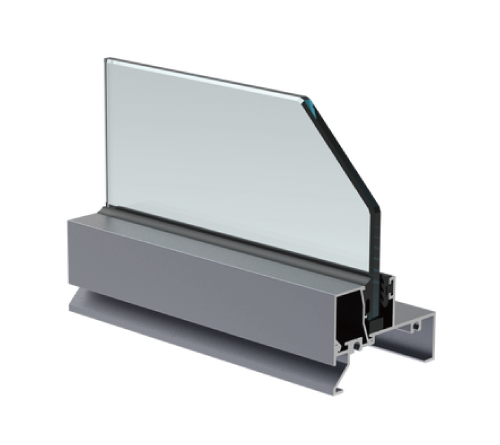

Outer Frame

  • Standard, 35mm depth for window of normal height.
  • Optional, 60mm, 80mm depth for tall window.

Inner Frame

  • Standard, 35mm depth
Performance Image

Wind loading

Exceeded severe rating of MS 832:2022

(At test pressure of 1200Pa, deflection of framing members was within the limit of span/175.)

Performance Image

Air infiltration

Complied with MS 832:2022 severe rating.

(At test pressure of 240Pa, air leakage was within 1.10 m³/hr.m² of area of fixed portion of the window and 1.44 m³/hr.m length of opening joint of openable portion of the window.)

Performance Image

Water tightness

Complied with MS 832:2022 severe rating.

(At test pressure of 240Pa, air leakage was within 1.10 m³/hr.m² of area of fixed portion of the window and 1.44 m³/hr.m length of opening joint of openable portion of the window.)

  • I-Santorini, Penang

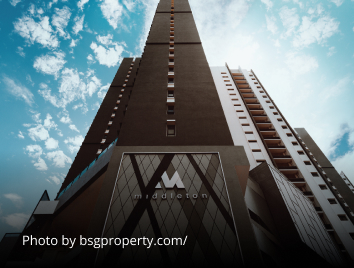

  • Middleton, Penang

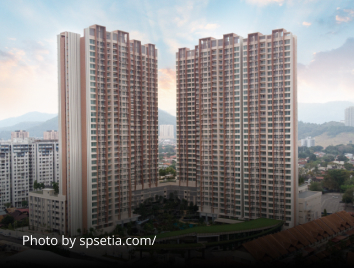

  • Setia Sky Ville, Penang
  • Beacon Executive Suites, Penang
Download PDF

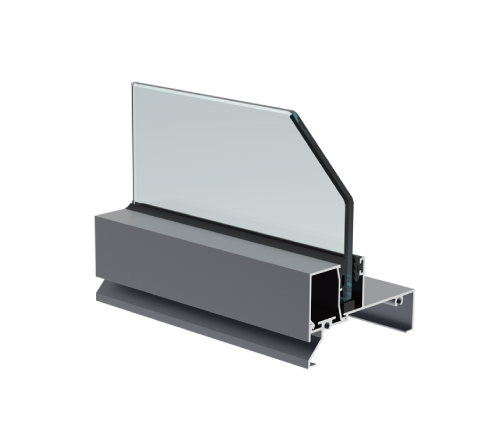

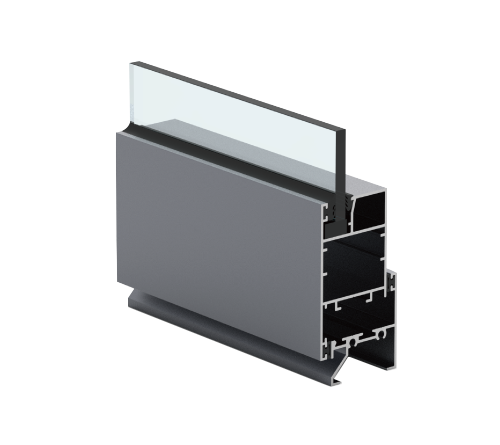

COMSASH™ C-39i

TOP HUNG/SIDE HUNG WINDOW, FOR MEDIUM AND HIGH-RISE BUILDING

Unlock unbeatable comfort and security with the C-39i window system. Precision-engineered for peak performance against wind loading, air infiltration, and water tightness, built to exceed expectations.

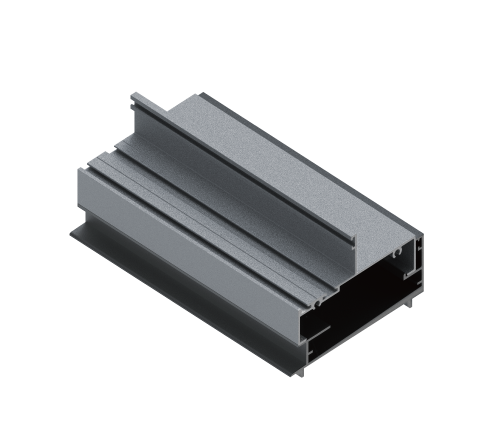

Outer Frame

  • Standard, 35mm depth for window of normal height.
  • Optional, 60mm, 80mm depth for tall window.

Inner Frame

  • Standard, 40mm depth
Performance Image

Wind loading

Complied with MS 832:2022 heavy commercial rating.

(At test pressure of 1500Pa, deflection of framing members was within the limit of span/175.)

Performance Image

Air infiltration

Exceeded MS 832:2022 heavy commercial rating.

(At test pressure of 300Pa, air leakage was within 1.10 m³/hr.m² of area of fixed portion of the window and 1.44 m³/hr.m length of opening joint of openable portion of the window.)

Performance Image

Water tightness

Complied with MS 832:2022 heavy commercial rating.

(Up to test pressure of 450Pa, free from water leakage.)

  • I-Santorini, Penang

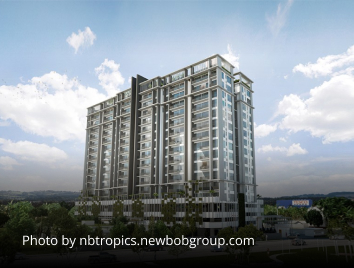

  • River Tropic, Penang
  • Reizz Residence, Selangor
  • Iconic Regency, Penang
  • Forestville, Penang
Download PDF

COMDOOR™ 2

PERFORMANCE SLIDING DOOR FOR HIGH RISE BUILDING

Build with COMDOOR™ 2, continuous weather seals ensure superior protection against air, water, and sound, surpassing conventional sliding doors. Plus, its innovative design minimizes friction for effortless operation, while robust construction withstands severe wind pressure and driving rain. Choose the elevated standard for performance and durability with COMDOOR™ 2.

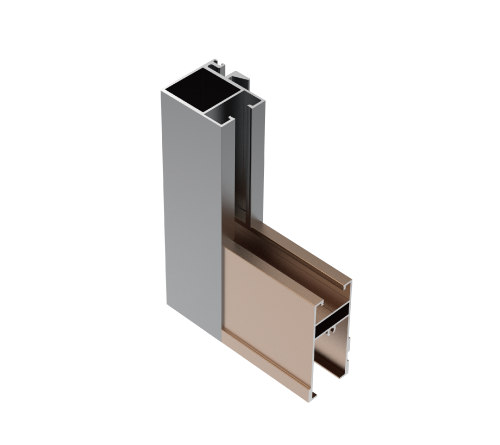

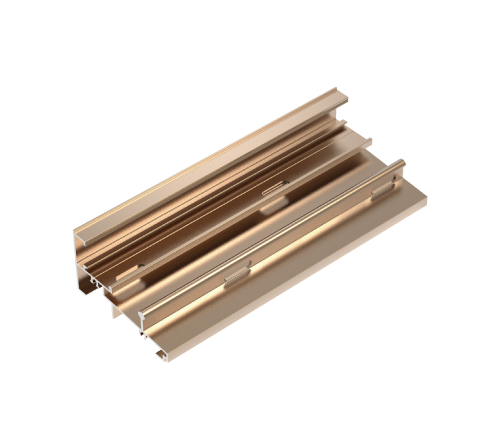

Outer Frame

  • Standard, 81.4mm depth and 123.60mm depth for two rail track and three rail track respectively.
  • Optional, 86mm depth and 129mm depth for two rail track and three rail tracks respectively. This option offers the flexibility that all panels are slidable but at the expense of lower performance in air and water tightness.

Interlocking Stile

  • Standard, 45mm width x 40mm depth for normal height door.
  • Optional, 45mm width x 65mm depth, 45mm width x 75mm depth, 45mm width x 80mm depth, 45mm width x 85mm depth for taller door or door with wider panel.

Butting Stile

  • Standard, 91mm width x 67mm depth male component section and 77mm width x 67mm depth female component section for all doors.
Performance Image

Wind loading

Complied with MS 1017:2022 heavy commercial rating.

(At test pressure of 1200Pa, deflection of framing members was within the limit of span/175.)

Performance Image

Air infiltration

Exceeded MS 1017:2022 heavy commercial rating.

(At test pressure of 180Pa, the air leakage of opening light and fixed light was within 6m³/hr/m of opening joint and 1.10 m³/hr/m² of fixed area respectively.)

Performance Image

Water tightness

Complied with MS1017:2022 heavy commercial rating.

(Up to test pressure of 240Pa, free from water leakage.)

  • I-Santorini, Penang
  • River Tropic, Penang
  • Reizz Residence, Selangor
  • Setia Sky Ville, Penang
  • Iconic Regency, Penang
  • Forestville, Penang
Download PDF

COMDOOR® 3i

PERFORMANCE SLIDING DOOR

The COMDOOR® 3i is the ideal choice for premium residential properties, including high-end terrace houses and bungalows. Designed with both aesthetics and durability in mind, it has passed rigorous performance tests, ensuring superior protection against air, water, and sound. With its innovative design and smooth operation, COMDOOR® 3i is the perfect blend of functionality and elegance.

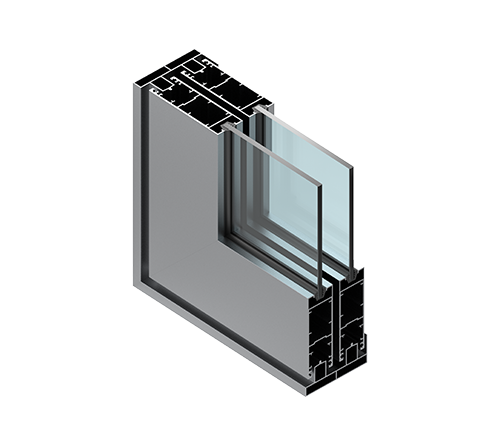

Outer Frame

  • Standard, 42.50mm, 83.50mm and 126.00mm depth for Single rail track, two rails track and three rails track respectively.
  • The option for two and three rails track offers the flexibility that all panels are slidable but at the expense of lower performance in air and water tightness.

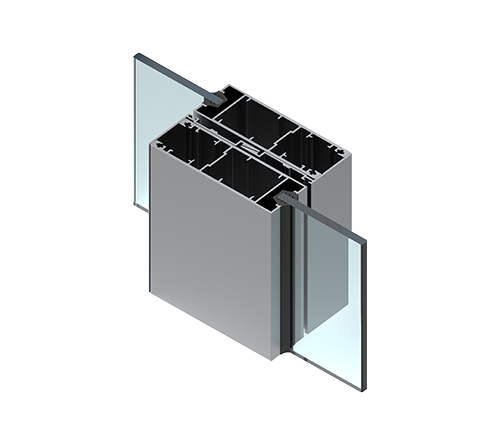

Interlocking Stile

  • Standard, 34mm width x 78mm depth, 34mm width x 84mm depth for normal height door.
  • Optional, 34mm width x 100mm depth for taller door or door with wider panel.
Performance Image

Wind loading

Complied with MS 1017:2022.

(At test pressure of 700Pa, deflection of framing members was within the limit of span/175)

Performance Image

Air infiltration

Complied with MS 1017:2022.

(At test pressure of 105Pa, the air leakage of opening light and fixed light was within 6m3/h/m of opening joint and 1.10 m3/h/m2 of fixed area respectively.

Performance Image

Water tightness

Complied with MS1017:2022.

(Up to test pressure of 180Pa, free from water leakage)

  • No project info available yet.

No project image available yet.

Download PDF
